G80 HOOK

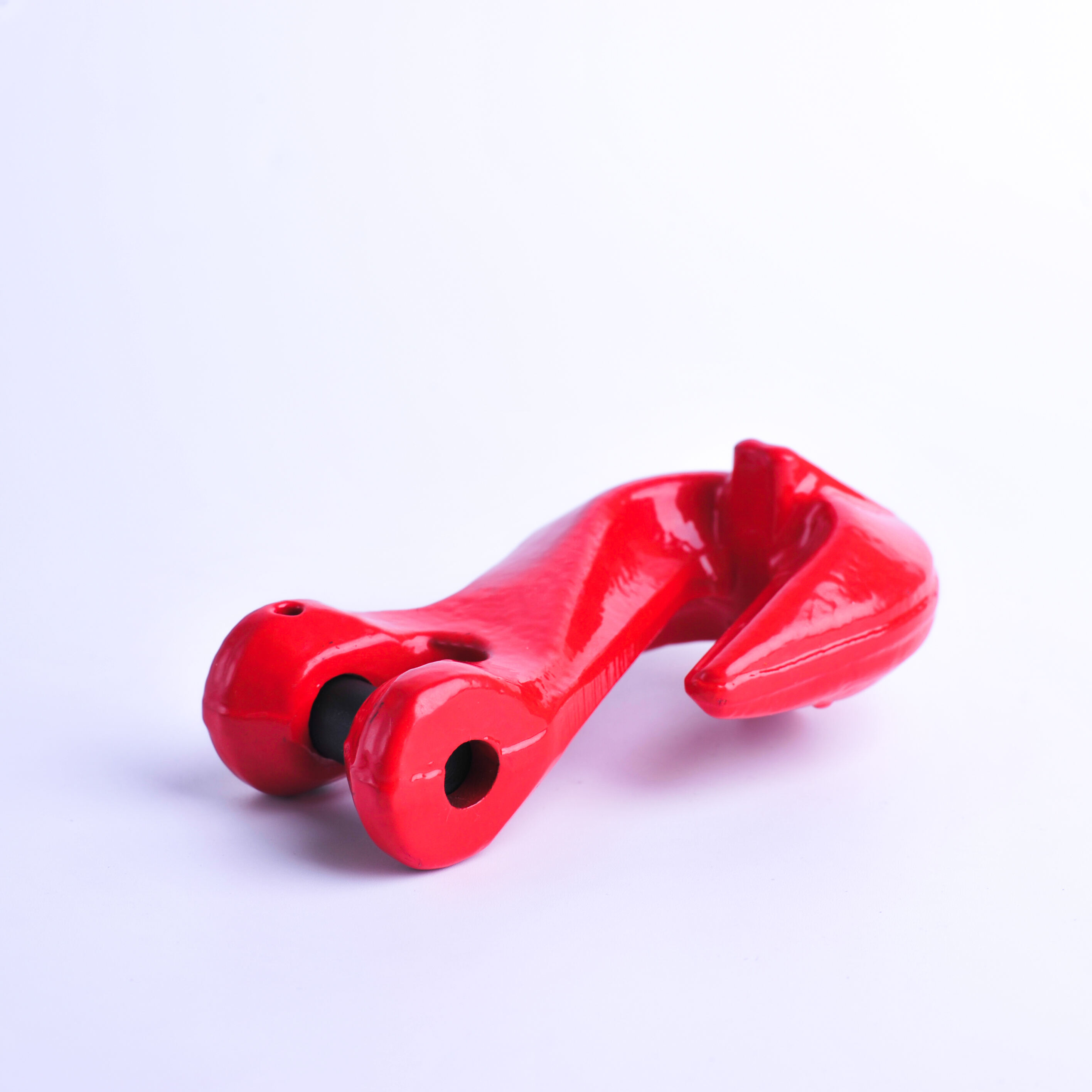

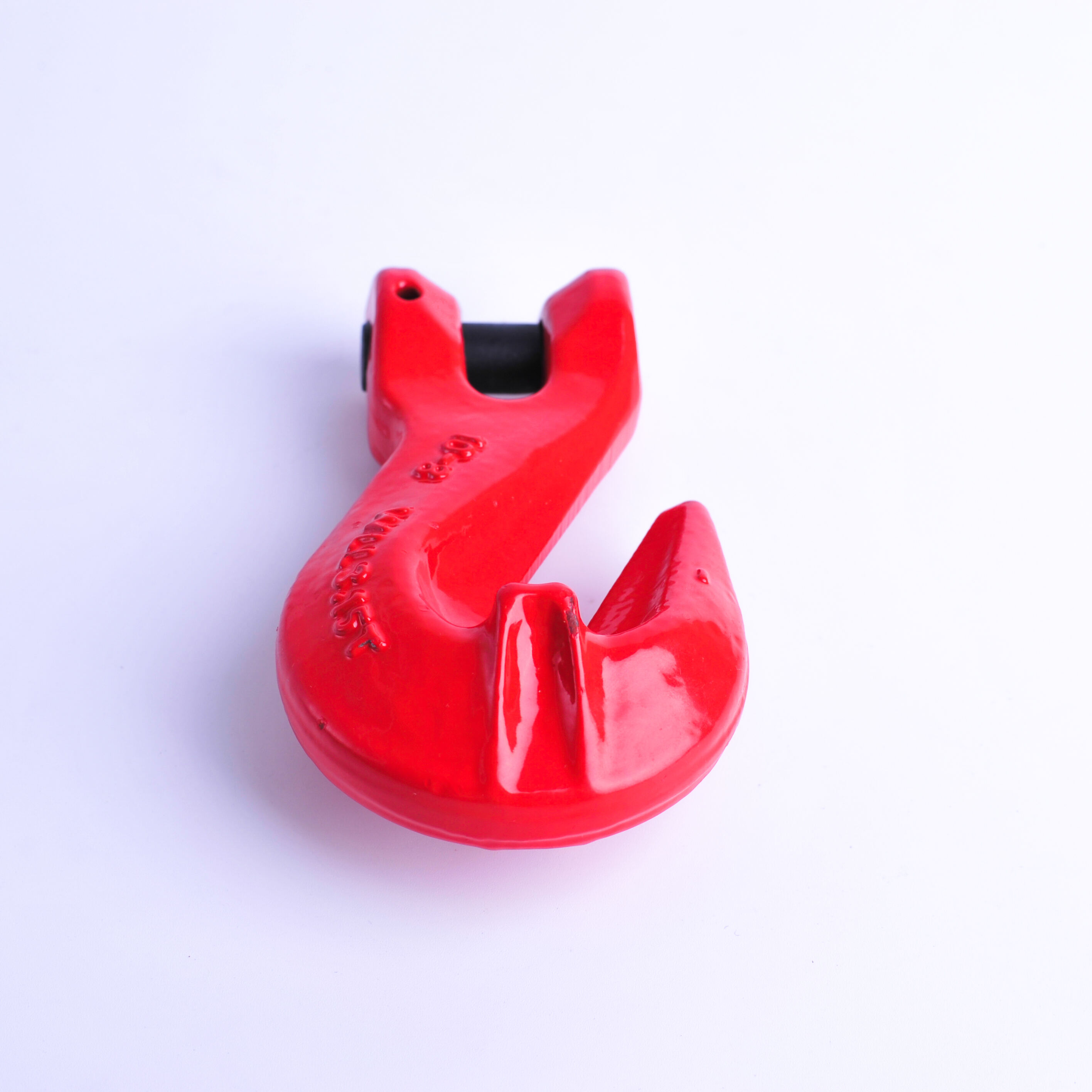

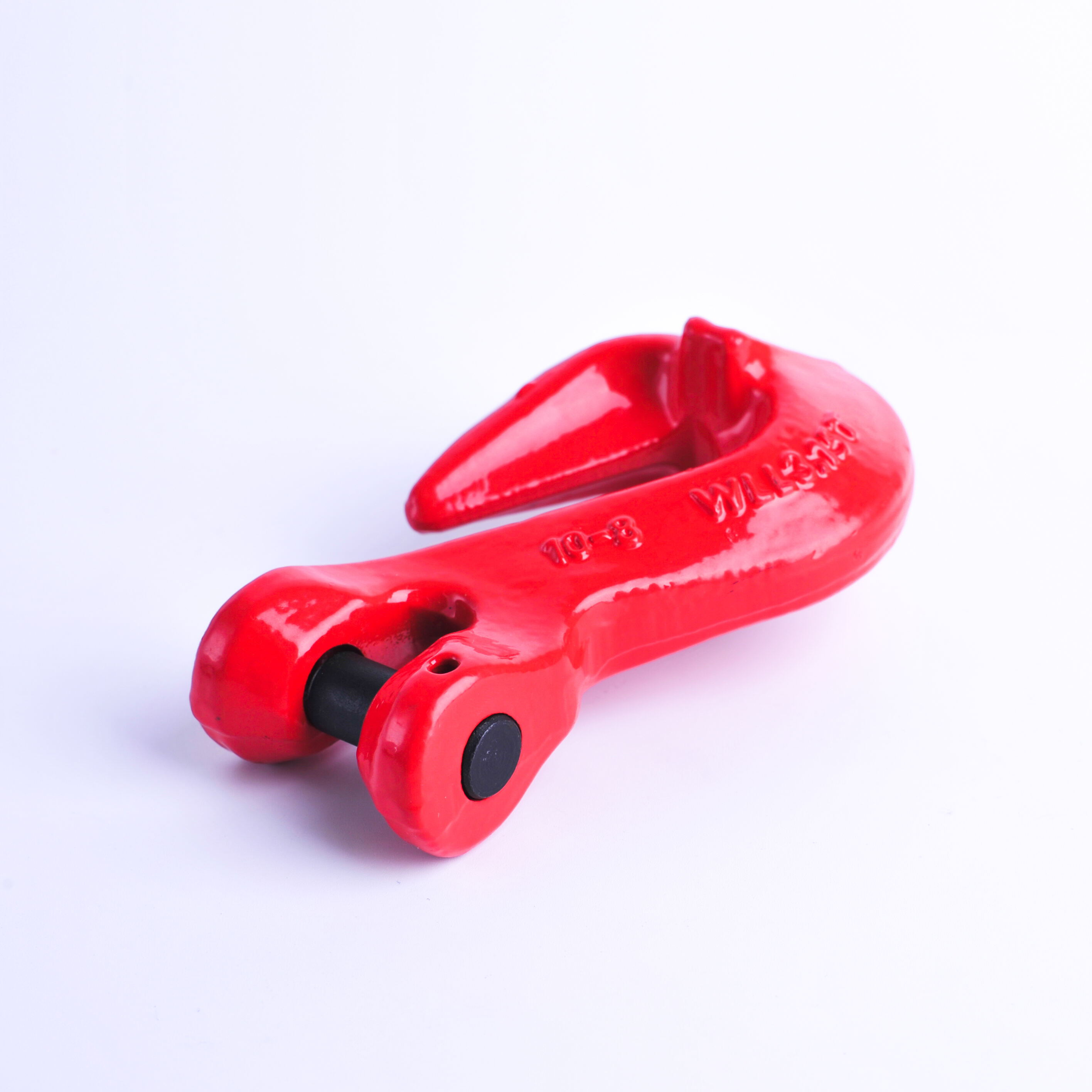

G80 CLEVIS GRAB HOOK WITH WINGS

MOQ:50 piece

Email: [email protected]
Mobile/WeChat/WhatsApp: +86-13210148139

Advantages
Introduction

Advantages

High Strength & Reliability – G80 hooks are forged from alloy steel (such as 20Mn2, 25MnV, or 34CrMo4) and undergo quenching and tempering treatment, achieving a tensile strength of over 800 MPa.

Widely Used – Suitable for most industrial applications, including construction, transportation, ports, and mining, meeting standard lifting requirements.

Cost-Effective – Compared to G100, G80 hooks are more affordable, making them a great choice for customers who need high-quality products within a budget.

Well-Matched Accessories – G80 chains, slings, and fittings are widely available, ensuring high market acceptance and strong compatibility.

Introduction

SIZE	WEIGHT	WLL	B.L	DIMENSIONS(MM)
MM	KG/PC	TON	TON	A	E	H	W	L
6	0.25	1.12	4.48	8	8.3	17.7	26.7	75
7/8	0.32	2	8	9.5	11	18.5	33.5	89
10	0.73	3.15	12.6	12.5	13	29	46	126
13	1.6	5.3	21.2	15	16.5	42.5	57.5	163.5
16	2.8	8	32	18.5	19	45.5	74	183.5
20	5	12.5	50	23	24	56	74	219
22	6.3	15	60	27	27	68.5	90	254
26	14.5	21.2	84.8	30	30	77	102	309
